Installing the Steering Column/Steering Shaft

Fig 1: Identifying Steering Column Inserted Upside-Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the steering column in upside-down position.

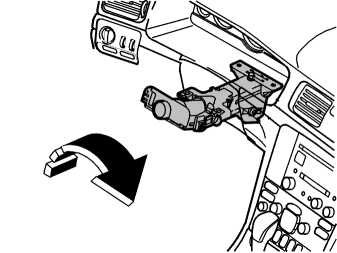

Fig 2: Identifying Steering Column Turned To Right

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn it to the right to correct position.

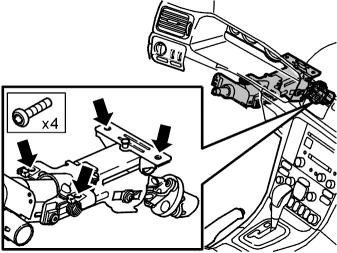

Fig 3: Identifying Hold Steering Column Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the steering column into the three guides.

Install the screws and tighten with 25 Nm.

Tighten the rear screw first.
