Keypad Active Suspension Vent Center Dashboard, Replacing

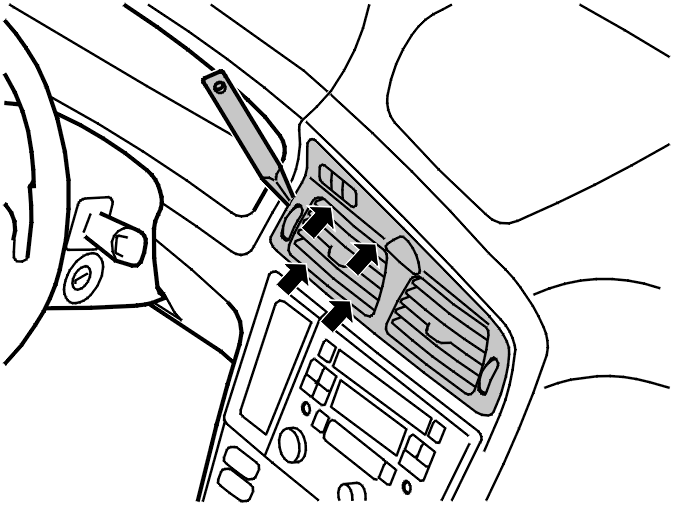

Fig 1: Identifying Keypad/Center Vent

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the keypad/center vent

Position a weatherstrip tool between the panel and the dashboard on the short side of the vent.

Detach the catches closest to the weatherstrip tool and pry out and detach the vent at the same time.

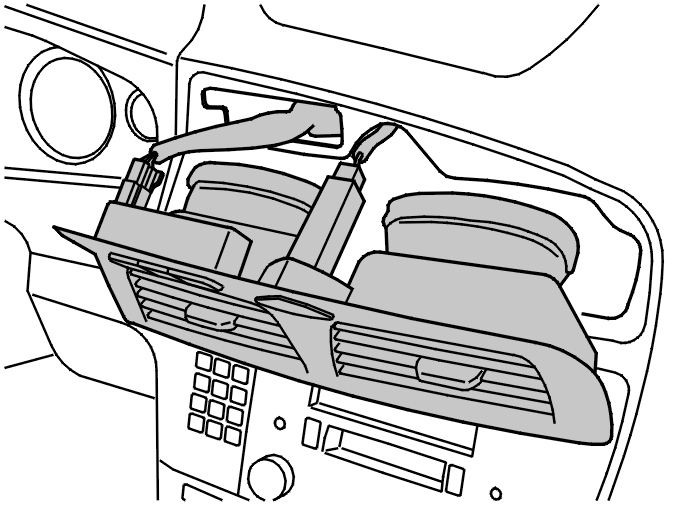

Fig 2: Identifying Connector For Control Panel And Connector For Hazard Warning Signal Flasher

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the connector for the control panel for active suspension
• the connector for the hazard warning signal flasher.

Installing the keypad/center vent

Install:

• the connector for the control panel for active suspension
• the connector for the hazard warning signal flasher.

Press the panel into place.
