The Air Distribution Unit In the Dashboard

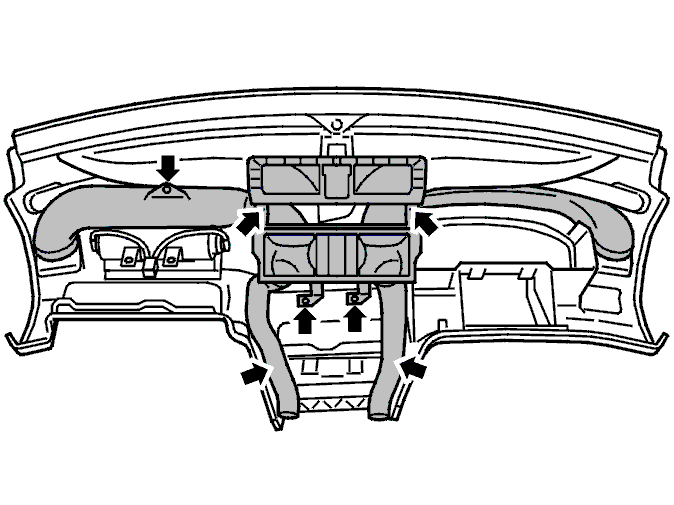

Fig 1: Identifying Dashboard Air Distribution Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: When replacing the dashboard on cars without air conditioning (A/C) or with manual climate control, the air duct for the B-post may plugged at the outgoing pipe from the dashboard.

Remove the dashboard. See DASHBOARD, REPLACING .

Remove the screws.

Detach the duct from the connections.

Detach the air duct from the air distribution unit.

Twist off the air duct from the lower mounting.

Remove the 4 screws.

Installation

Install in reverse order.
