Air Cleaner Passenger Compartment, Replacing: Removal

Remove:

the soundproofing panel. See Soundproofing Panel, Replacing .

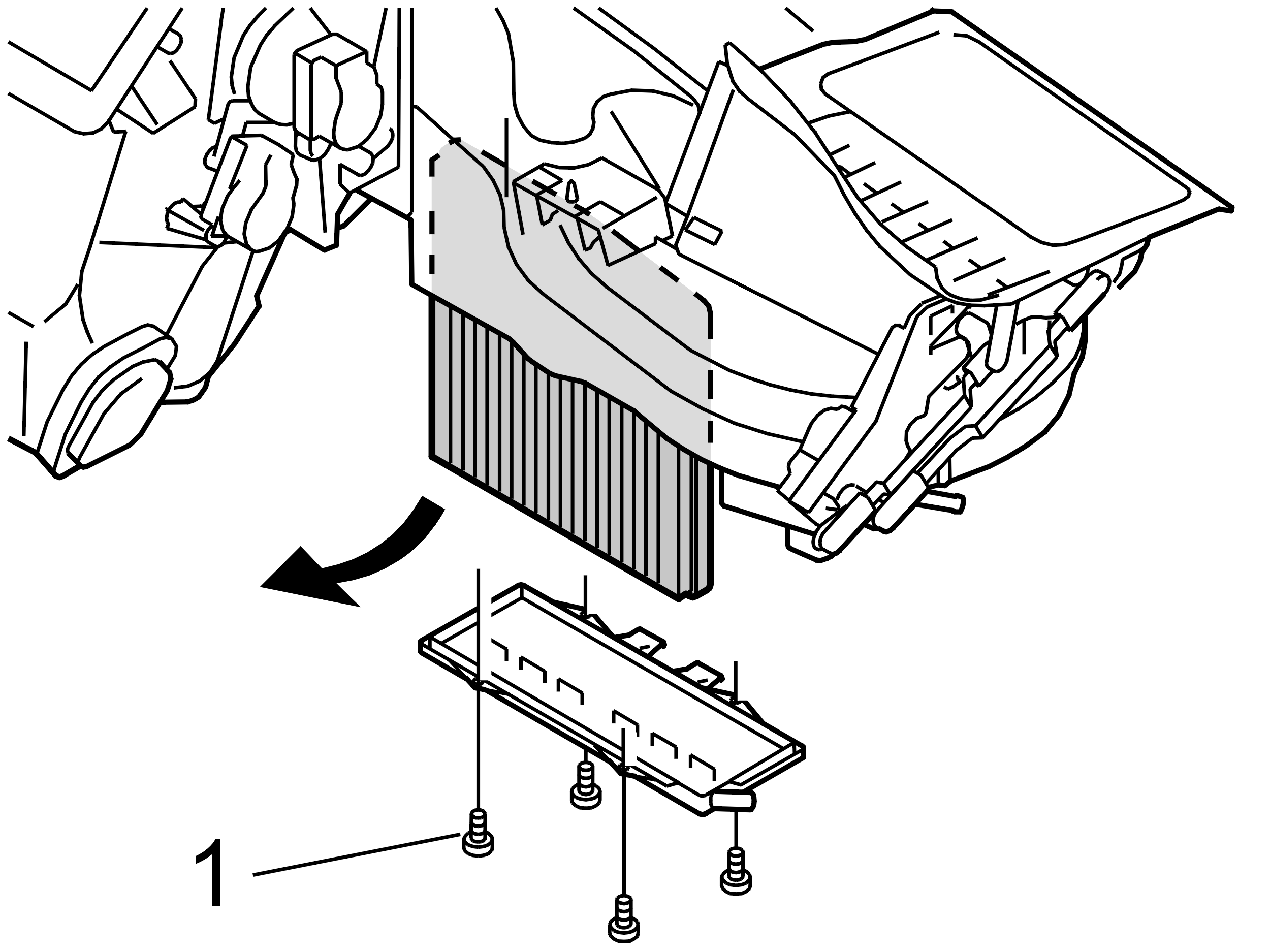

Fig 1: Identifying Cover Screws

GLL107477

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screws for the cover
the cover.

Pull the air cleaner (ACL) downwards / away.
