Air Cleaner Passenger Compartment, Replacing: Installation

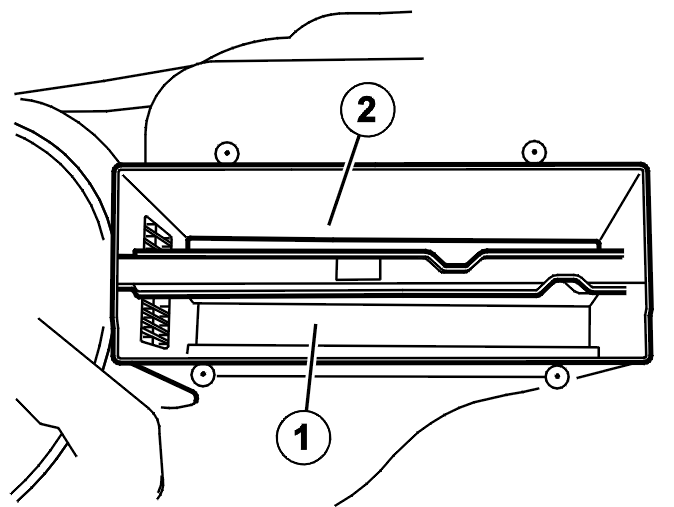

Fig 1: Identifying Pollen And Multi Filter Compartments

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the air cleaner (ACL). There are 2 alternative positions for the air cleaner (ACL). See the illustration.

The pollen filter (standard) must be installed in the smaller compartment (1).

The multi filter (cars with an air quality sensor) must be installed in the wider compartment (2).

Install:

• the screws. The front left screw must not be tightened to more than 0.8 Nm
• the soundproofing panel. See Soundproofing panel, replacing .
