Removing the Receiver Drier

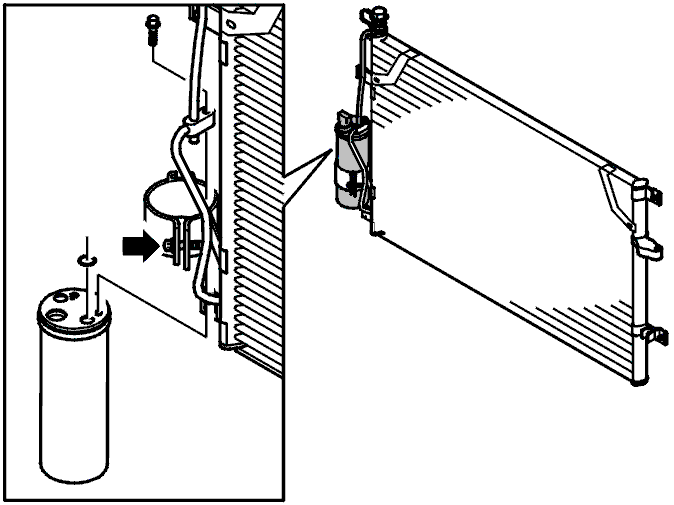

Fig 1: Identifying Receiver Drier & Condenser

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the condenser. See Condenser, Replacing .

Remove:

• the intermediate pipe. See Pipe Receiver Drier, Replacing
• the pipe coupling from the condenser
• the screw for the bracket.
