Climate Units - Removal, Replacement And Installation
>>
Air Conditioning (B5204T5; 2004-2005)
>>
Pipe Receiver Drier, Replacing
>>
Removal
>>
Receiver Drier Hoses
Receiver Drier Hoses

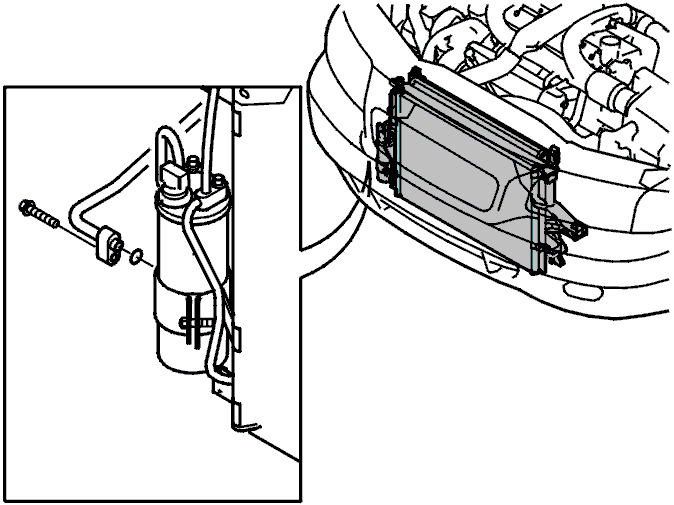

Fig 1: Identifying Drier Hoses And Condenser
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the condenser. See
Condenser, Replacing
(engine B5254T4) or
Condenser, Replacing
(other engines).

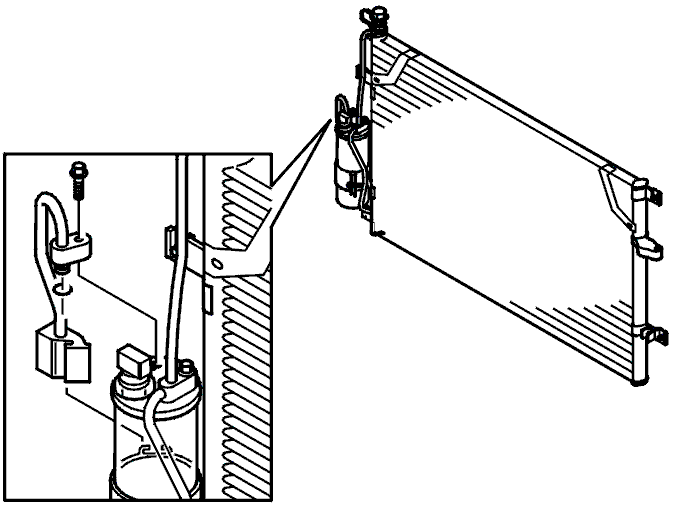

Fig 2: Identifying Receiver/Dryer Pipe Coupling
Courtesy of VOLVO CARS OF NORTH AMERICA.
Detach the pipe coupling from the receiver/dryer
Detach the pipe from the bracket. Remove the pipe.
