The Needle Valve In the Service Valve: Removal

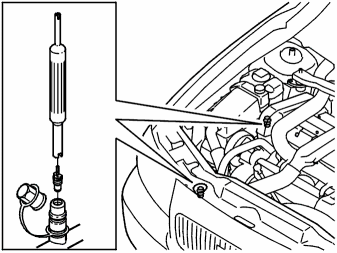

Fig 1: Identifying Needle Valve

GLL105194

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the valve cap
Unscrew the needle jet. Use special tool 9511204 .
