Removing the Drive Plate

Fig 1: Loosening Drive Plate Screw With A Counter Hold
GLL102396Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the screw, 1 pc., for the drive plate using a counterhold 9995596 .

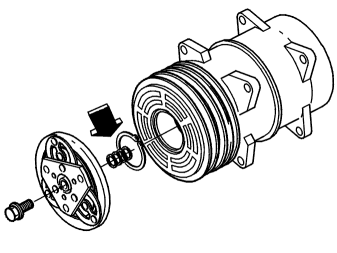

Fig 2: Identifying Drive Plate
GLL102392Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the drive plate with a puller: 9995597 .

NOTE: Keep the shims.
