Installing the Solenoid Coil

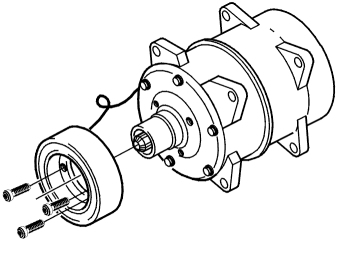

Fig 1: Identifying Magnet Coil

GLL102390

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws, 3 pcs., for the new magnet coil (solenoid). Tighten with 5 Nm.
