Installing the Drive Plate

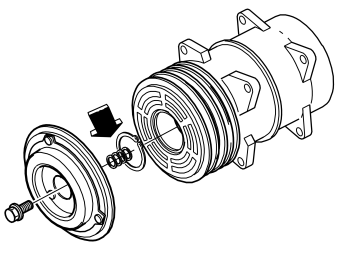

Fig 1: Identifying Drive Plate Shims

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the shims.

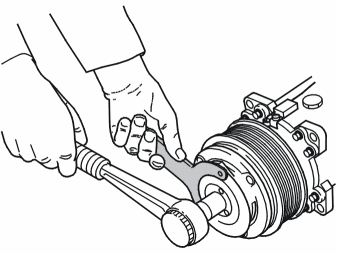

Fig 2: Tightening Screw Using With A Counter Hold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the drive plate
• the screw, 1 pc., using a counterhold: 9997193 and tighten with 13 Nm.
