Checking the clearance

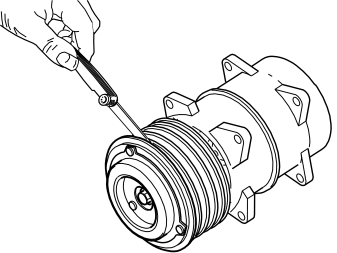

Fig 1: Checking Turning Plate And Belt Pulley Clearance With Feeler Gauge

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the clearance between the turning plate and the belt pulley with a feeler gauge.

The clearance should be 0.3-0.5 mm.

0.3 mm clearance all the way round

It must not be possible to insert 0.6 mm at any point.

If clearance is not within given values, replace the shims.

The following dimensions are available:

0.2 mm

0.3 mm

1.0 mm.
