Seal SWS and plug: Plug

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

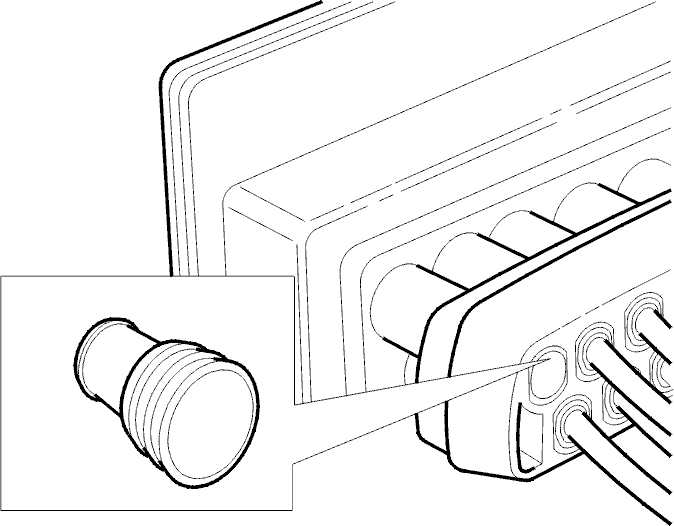

Fig 1: Identifying Plug
GLL101274Courtesy of VOLVO CARS OF NORTH AMERICA.

Plugs are used to close the unused cavities in a moisture proof housing.

A plug is in principle like a seal but without a hole in it for a cable.

Plugs are included in the repair kit p/n 9814235 for housings with cable terminals of the type 2.8 SWS.
