Select terminal removal tool

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

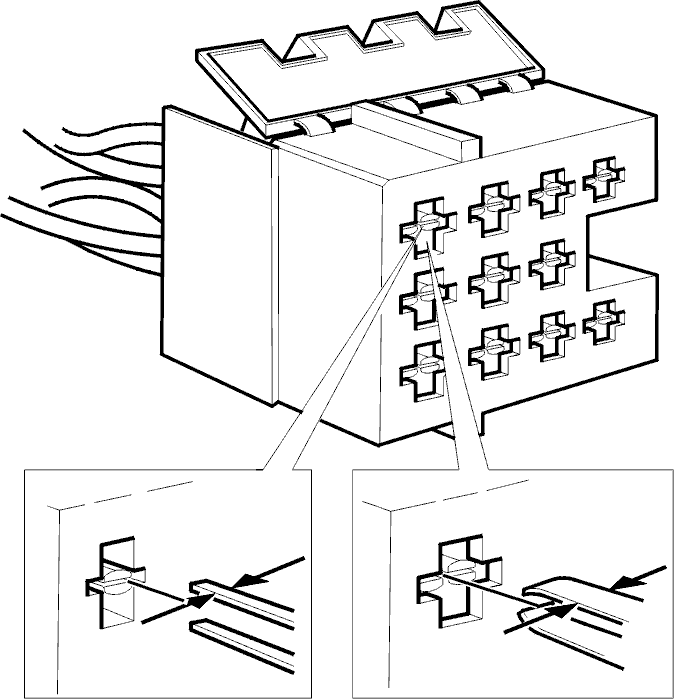

Fig 1: Identifying Terminal Removal Tools
GLL101246Courtesy of VOLVO CARS OF NORTH AMERICA.

See Using terminal removal tools

Select the terminal removal tool that matches the housing's cavity openings.

Remove the cable terminal from the housing

Use the recommended terminal removal tool and follow the operating procedure described.
