Housing with secondary locking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

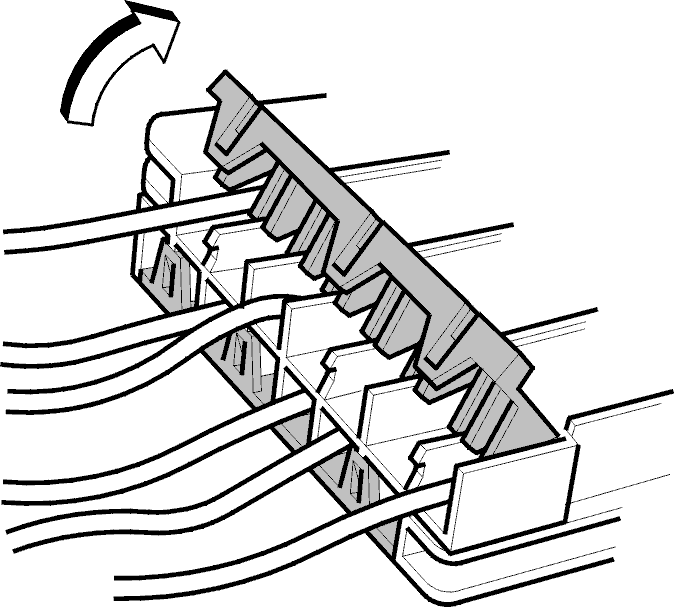

Fig 1: Folding Up Secondary Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

To replace a cable terminal the secondary locking must first be opened.

The following procedures describe how different types of secondary locking can be released to open a housing

Secondary locking socket/housing retainer type
Secondary locking lid/catch cover
Secondary locking cavity cover/locking plate

More examples of procedures for opening secondary locking can be found in Example 1 , Example 2A , Example 2B , Example 3 and Example 4 .
