Replacing the holder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Holder
GLL111190Courtesy of VOLVO CARS OF NORTH AMERICA.

Separate the holder by pressing it together and working the upper section up and off as shown.

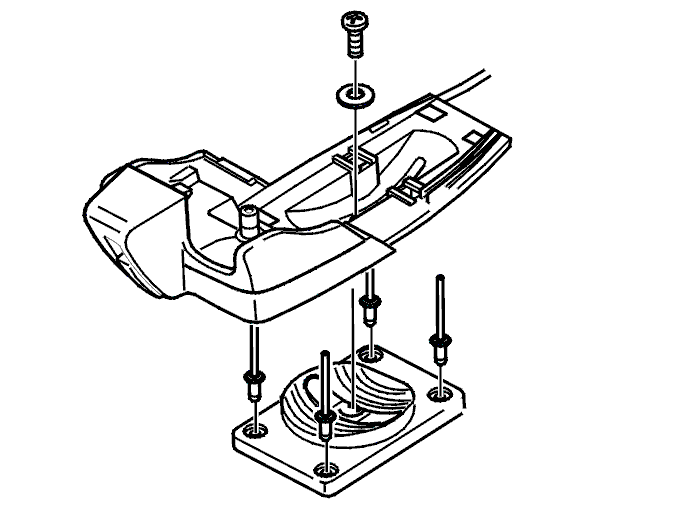

Fig 2: Identifying Rivets For Holder
GLL111189Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rivets for the holder according to Removing rivet .
