Installing the viscous coupling into the viscous coupling housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

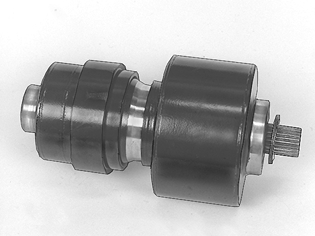

Fig 1: Identifying Viscous Coupling
GLL109836Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the viscous coupling as marked. See Removing the screw for holding the flange to the viscous coupling .

NOTE: Check that the loose washer is in place.

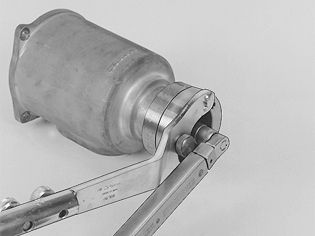

Fig 2: Identifying Counterhold With Adaptor Flange
GLL109870Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new screw  . Tighten to 50 Nm  . Use counterhold 9995759 with adapter 9995759 .

NOTE: After installing the viscous coupling housing, see Final drive, transferring components  .
