Installing the rear engine mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

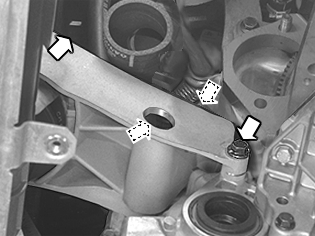

Fig 1: Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the vacuum hose for the engine mounting
the rear engine mounting on the transmission
the engine mounting screws. Tighten to 50 Nm .
