Installing the engine stabilizer brace

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

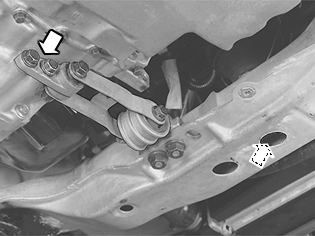

Fig 1: Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws. Tighten to 50 Nm .

Install the screw for the front engine pad. Tighten to 50 Nm .
