Install the brake disc

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

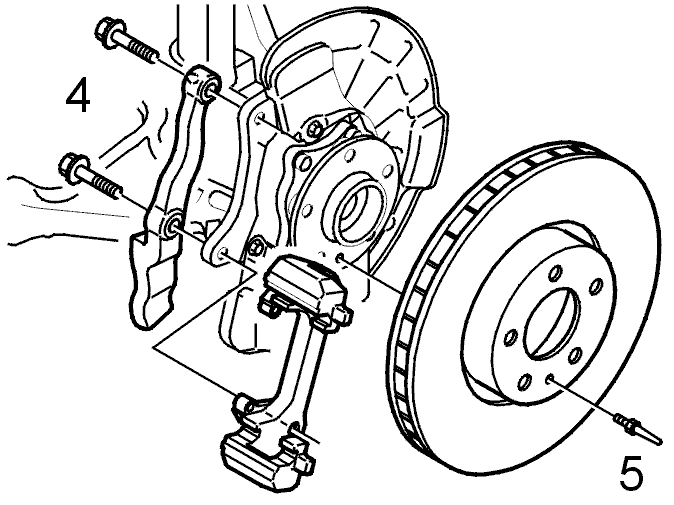

Fig 1: Identifying Caliper Holder And Brake Disc Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Be careful when handling the new brake disc. Careless handling can cause damage to the brake disc (out-of-true).

Install:

the new brake disc. Tighten the locating pin (5). Tighten to 8 Nm
the caliper holder. Use new mounting screws (4). Tighten to 100 Nm .

Install the brake pads and brake caliper

See Refit the brake lining and brake caliper .

Install the locating pins in the brake caliper

See Install the locating pins in the brake caliper .

Install the wheel

See Installing wheels
