Front wheel hub, measuring lateral runout: Preparations
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Take out measurement tool set 9995418 .

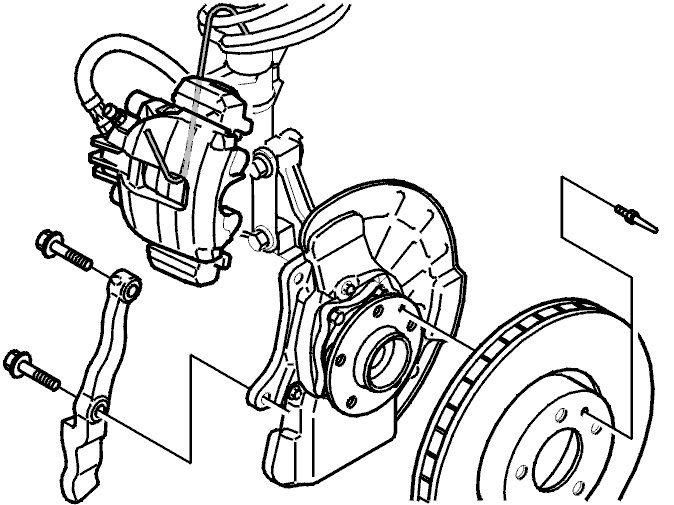

Remove:
- the wheel
- the mounting screws for the brake caliper holder. Hang the brake caliper from the spring using a wire.
Remove the brake disc
Install the bracket included in the test equipment
