Install the cable in the wheel unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

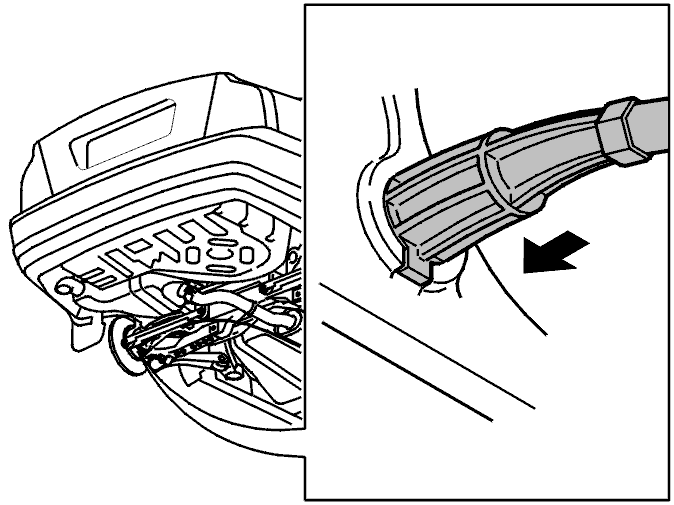

Fig 1: Cable In Wheel Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the O-ring on the wheel unit lightly using petroleum jelly.

Install and press the guide lug for the cable sleeve into place in the wheel unit.

NOTE: This is important for the operation of the parking brake.
