Install the handle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

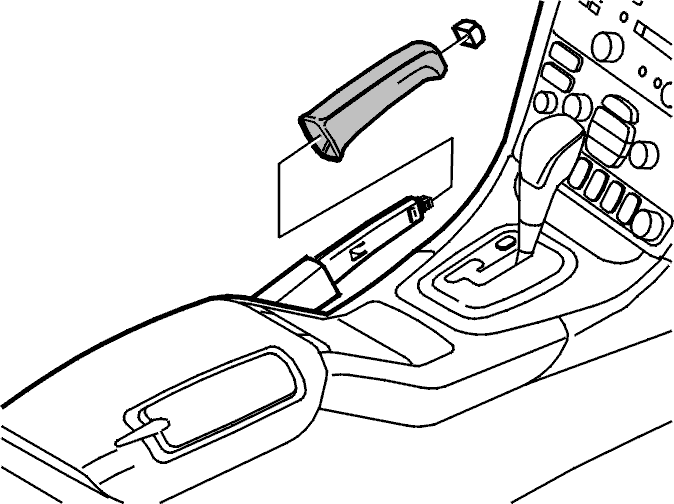

Fig 1: Identifying Handle Installation
GLL104583Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the handle into place until the lugs in the handle lock onto the lever.

Press the knob onto the lever.

Check that it is secure

Check by pulling the handle forward.
