Preparations for removing the master cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

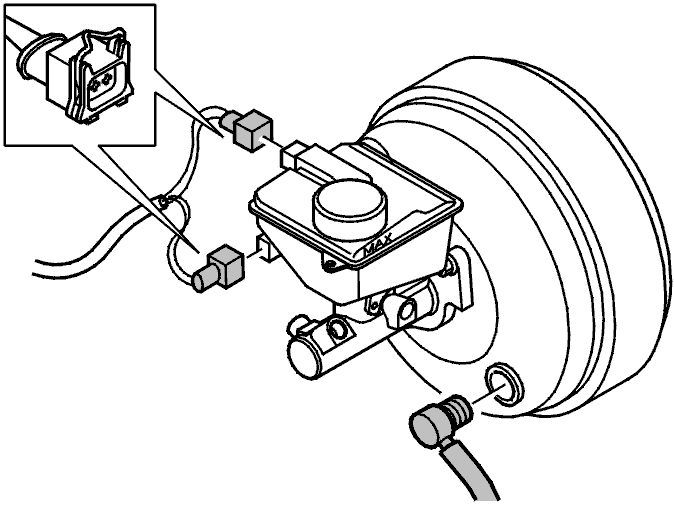

Fig 1: Identifying Vacuum Hose And Connectors
GLL104505Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: On cars with 6-cylinder engines:  Disconnect the connectors from the master cylinder. Mark up a connector.

Disconnect the connectors on the power brake booster.

NOTE: If the car has hydraulic clutch: Block the hose to the clutch cylinder. Use hose pliers.
