Install the master cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

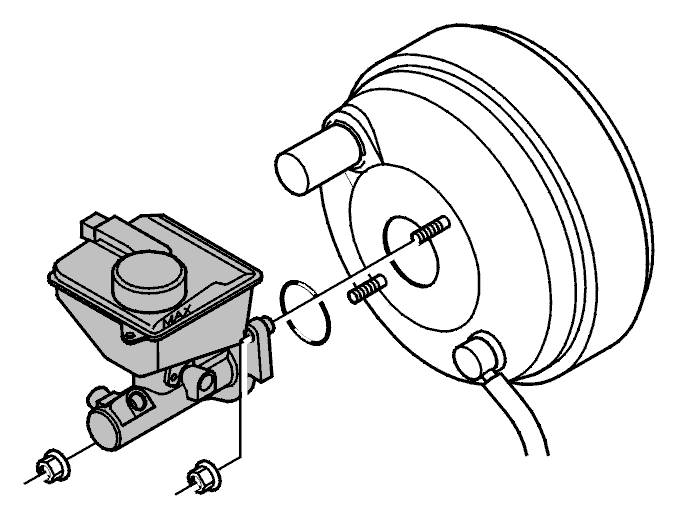

Fig 1: Identifying Master Cylinder Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Check that the gasket is in place on the master cylinder.

Tighten the nuts. Tighten to 25 Nm .

Install the vacuum hose on the check valve for the power brake booster.
