Installing the master cylinder
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Transfer the brake fluid reservoir to the new master cylinder.
Check that there is no dirt in the terminals.
Lubricate the O-rings and any hoses with brake fluid or glycerin.
NOTE:
Do not use a soap solution or mineral oil to lubricate the hoses. Use brake fluid or glycerin.

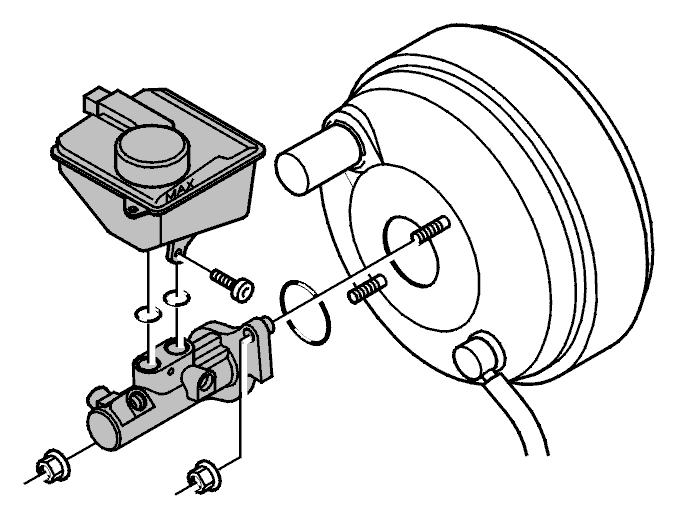

Install:
- the brake fluid reservoir from directly above
- the screw on the underneath of the brake fluid reservoir. Tighten. See Tightening torque .
