Replacing the brake pipe for the right rear wheel: Preparations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

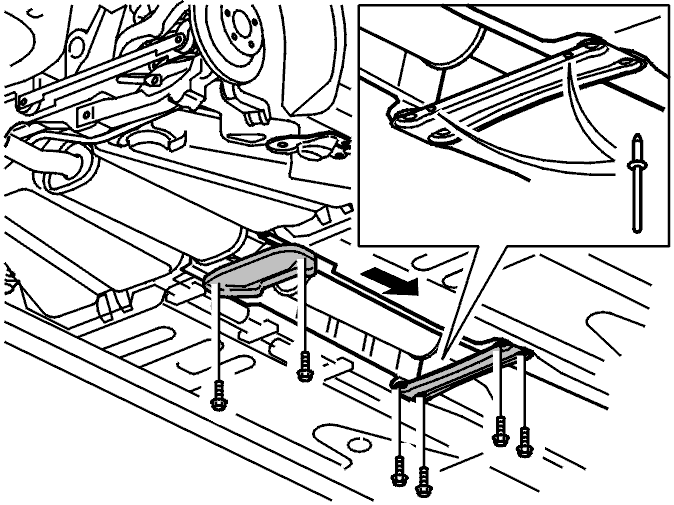

Fig 1: Central Cross Member Heat Deflector Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 screws holding the heat deflector onto the central cross member.

Drill out the 2 blind rivets holding the rear heat deflector to the cross member.

Remove the 2 screws and nuts holding the exhaust pipe onto the rear cross member.

Slide the rear heat deflector forward over the front heat deflector to expose the right brake pipe.
