Install the cross members and heat shield

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

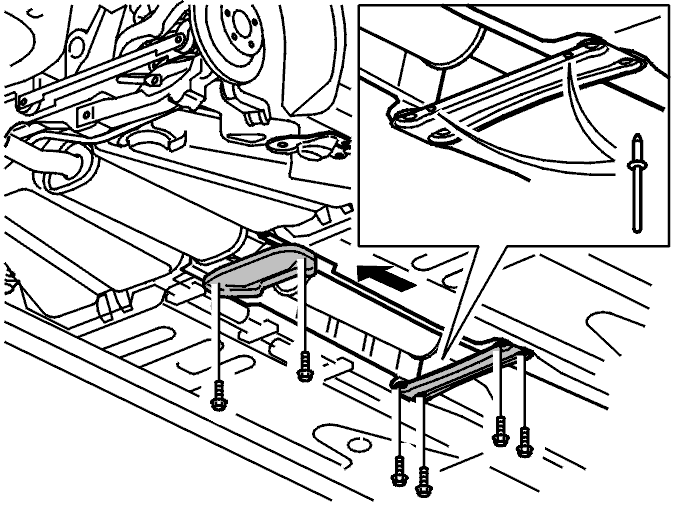

Fig 1: Central Cross Member Heat Deflector Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull back the rear heat deflector to line up with the holes.

Blind rivet the heat deflector to the cross member

Install the screws, nuts and heat deflector on the rear cross member. Tighten all screws and nuts to 25 Nm .

Remove the pedal jack.

Fill and bleed the brake system

See Brake system, bleeding (using bleeding unit)

Pressure test the brake system

See Pressure test the brake system
