Install upper steering shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

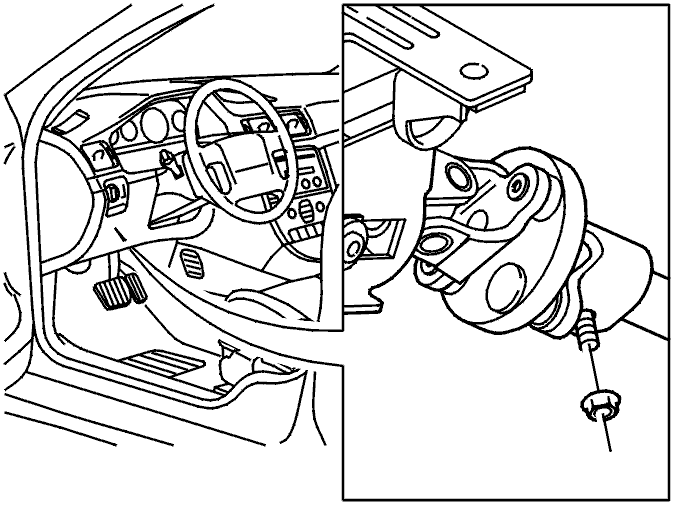

Fig 1: Identifying Steering Shaft Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the key in the steering wheel lock.

Pull the upper steering shaft down. Secure it on the lower steering shaft.

Install the nut. Tighten to 30 Nm .

NOTE: Use new screw and locknut.

Install:

the stop lamp switch. See Installing the brake lamp switch
the push rod and the clip. See Check the shift-lock function .
