Continue removing the brake pedal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

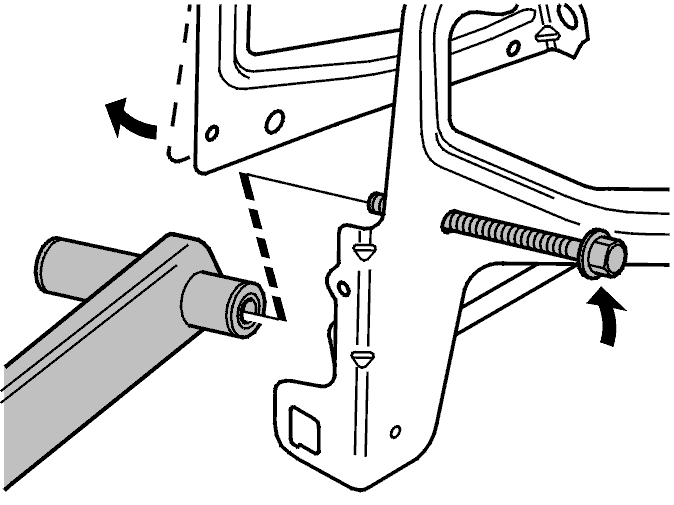

Fig 1: Identifying Brake Pedal Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the bracket up. Pull the brake pedal downwards at an angle so that it releases from the screw and bracket.
