Separating The Fuel Line

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

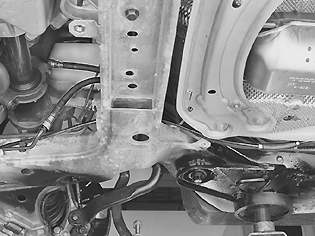

Fig 1: EVAP Line Behind The Rear Right Mounting For The Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

If an engine block heater is installed, mark the position of the fuel lines.

Separate the quick-release connectors for the fuel pressure line and engine block heater (option). See also: Fuel system, quick-release connectors .

HINT: Use tool 9995666 .

Pull apart the EVAP line at the rubber joint behind the rear right mounting for the sub-frame.
