Fuel system, quick-release connectors

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Special tools:

9995666

9512666

NOTE:

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

There are different types of quick-release connector in the fuel system. Special tools are required for some connectors.

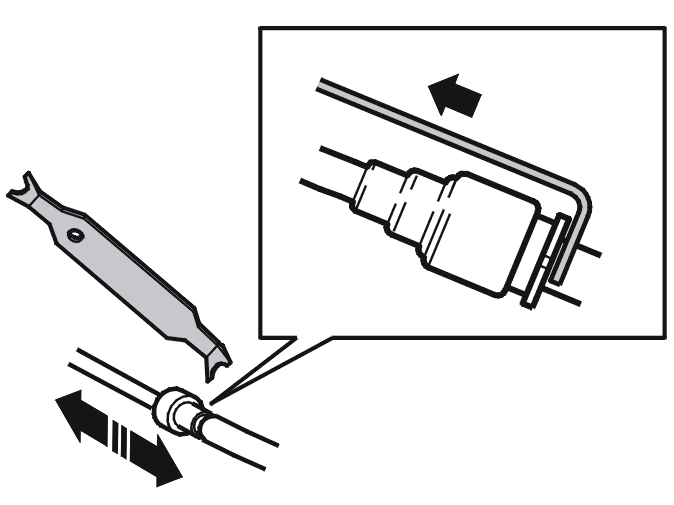

Fig 1: Pressing In Catch Using Special Tool (999 5666)

Courtesy of VOLVO CARS OF NORTH AMERICA.

If the catch appears as shown in the illustration, special tool 9995666 must be used to press in the catch.

Fig 2: Pressing In Catch Using Special Tool (951 2666)

Courtesy of VOLVO CARS OF NORTH AMERICA.

If the connector has an internal catch, special tool 9512666 must be used.
