Removing the rear fender liner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

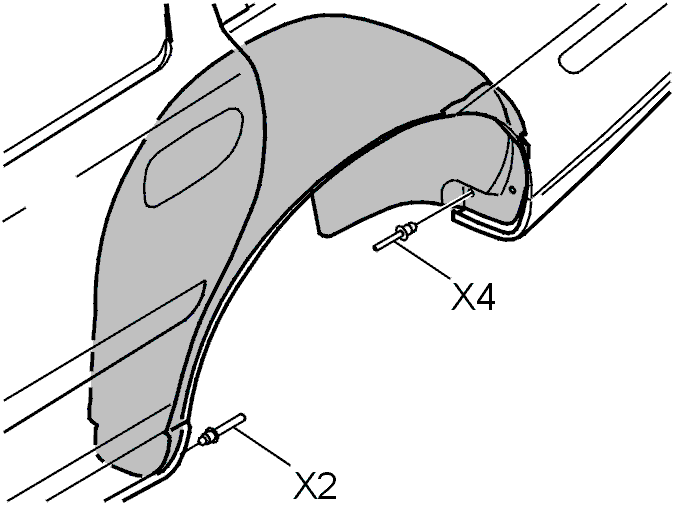

Fig 1: Drilling Out Two Rivets From Door Sill

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drill out the two rivets from the door sill according to Removing rivet
Drill out the four rivets from the bracket for the bumper according to Removing rivet .

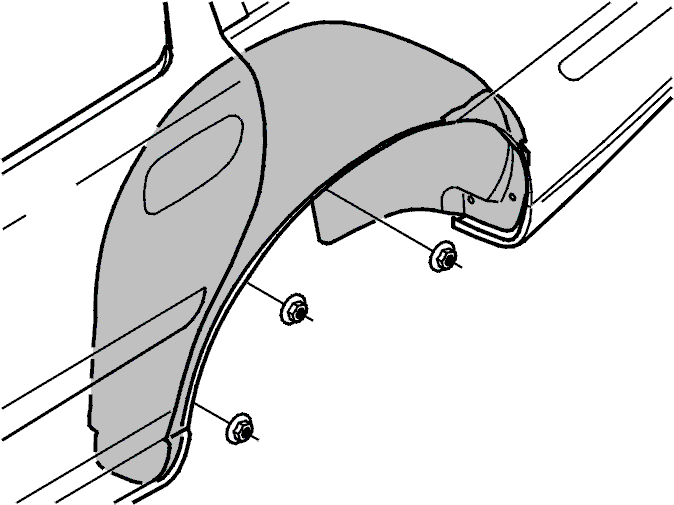

Fig 2: Identifying Three Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the three nuts
Release the fender from the welded nuts.

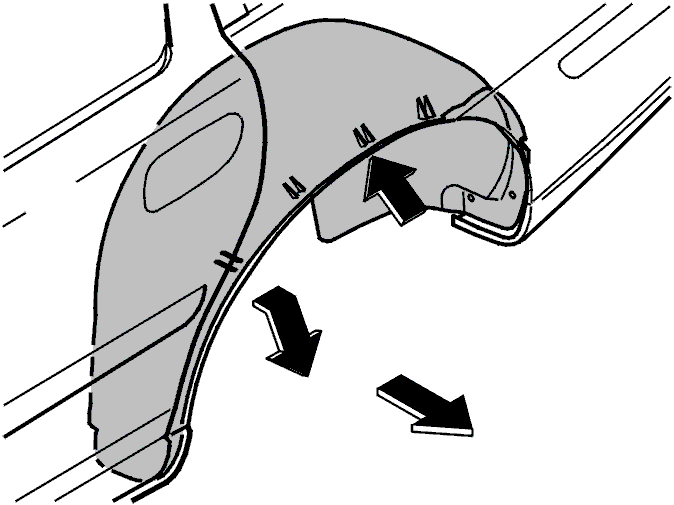

Fig 3: Identifying Fender Liner & Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the fender liner inwards to detach the hooks.
