Installation of the steering-column lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

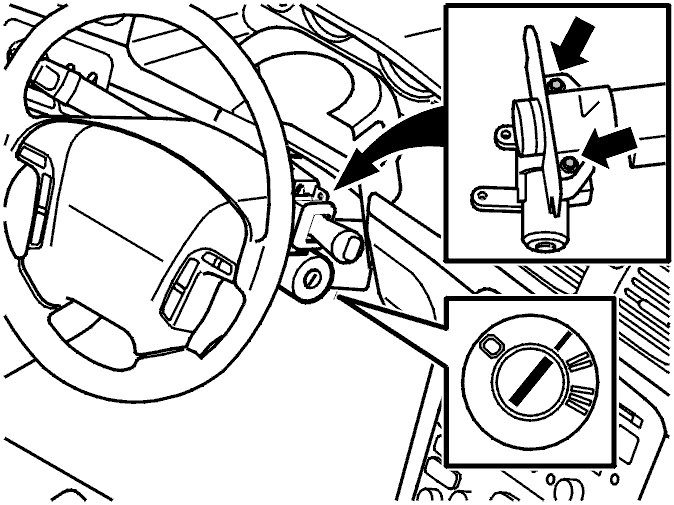

Fig 1: Identifying Ignition Key Slot & New Steering Wheel Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the ignition key in the new steering-column lock.
Check that the key is in position I and that the lock lug on the steering-column lock is down.
Install the new steering-column lock against the cap on the steering column.
Install new security screws.
Tighten the security screws until screw heads break off.
