Replacing The Loudspeakers In The Rear Doors

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Carry out operation. See Panel, rear side door, replacing

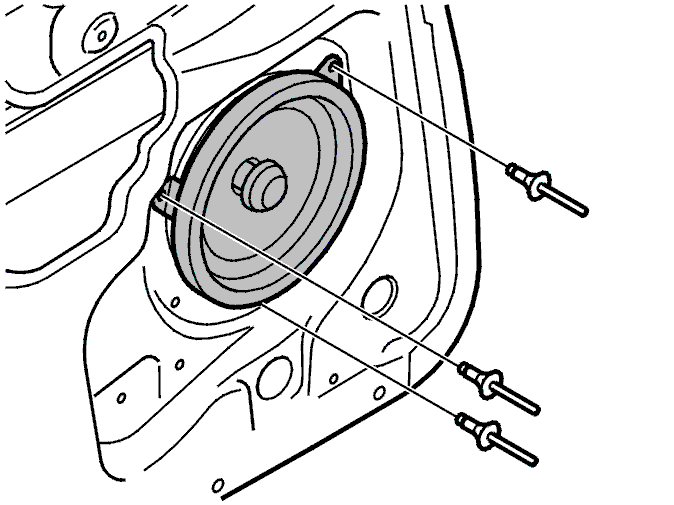

Fig 1: Identifying Blind Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drill out the blind rivet. See Removing rivet

Remove the wiring.

Install:

In reverse order.

NOTE:

Always use new blind rivets, P/N 982565 .
