Installing the tools on the clutch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

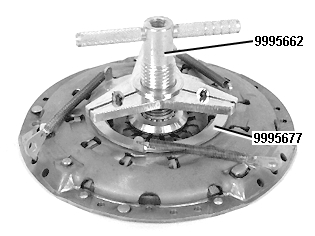

Fig 1: Identifying Clutch Diaphragm Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install counterhold 9995677 , see Aligning the counterhold for automatic clutch adjustment .

Install the compression tool 9995662 , see Installing the compression tool .

First tighten the center screw on the compression tool to light contact. Then compress the clutch.

NOTE:

When the center screw comes into contact with the diaphragm spring, the screw should, for a loose clutch, be tightened a maximum of 4-4.5 turns.

Applies only to certain engine versions with self adjusting clutches:

NOTE:

When the center screw comes into contact with the diaphragm spring, the screw should, for a loose clutch, be tightened 4.5 - 5 turns or until a clear click is heard .
