Installing the compression tool

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

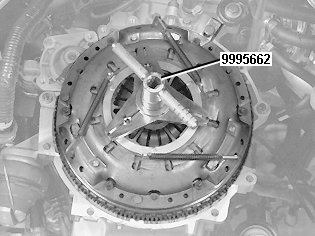

Fig 1: Compression Tool 999 5662 Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install compression tool 9995662 , together with the conversion kit on the clutch. The tool is modified as described in the tool bulletin.

Ensure that the hooks grip correctly, although without clamping the adjuster springs.

Centre the compression tool and tighten the screw to light contact against the diaphragm spring. At the same time, check that the hooks on the tool are in position.

Applies only to clutches without self adjustment:

Note the position of the handle with slots. Then screw in by not more than two turns .

Remove the clutch and clutch driven plate

Applies only to certain engine versions with self adjusting clutches:

Compress the clutch so that the automatic adjuster is not under load.

If the clutch is worn, the counterhold turns the automatic adjustment to the original position marking.

The marking consists of two stamped arrows.

Then continue to screw in the compression tool until the diaphragm spring has pressed the pressure plate to a free position.

A click can be heard when the clutch pressure plate snaps out.

Remove the clutch and the clutch driven plate .
