Removing the tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

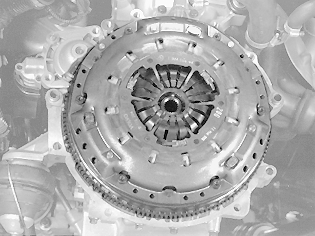

Screw out the center screw. Remove the compression tool.
NOTE:
Applies only to certain engine versions with self adjusting clutches: Keep fingers away from the three clutch rivets when relieving a load or removing the compression tool. There is a risk of clamping injuries.
Applies to all clutch versions:
Remove the hooks. Remove the counterhold.
Remove the centering cone from the clutch driven plate.
Remove the socket. Tap the centering tool lightly with a rubber mallet so that the expander releases. Use a rubber mallet so that the threads are not damaged. Remove the centering tool.
Remove the flywheel gear sector.
NOTE:
Installing the gearbox:
To install the transmission, see Transmission, installation .
