Separate the connector
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the connector screws
- the retainer for the grommet for the transmission wiring.

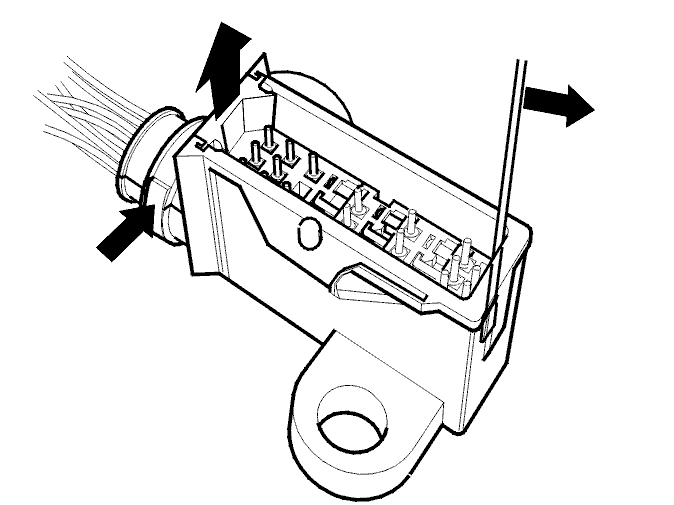

Remove the sockets from the connector casing.
Insert a screwdriver between the casing and socket. Press in the catch. At the same time, slide the sockets out of the casing.
