Install the drive shaft screw

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

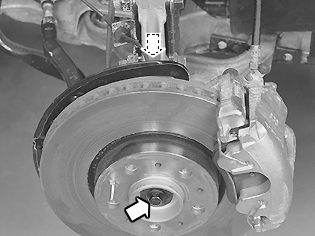

Fig 1: Identifying Screw For Right Drive Shaft
GLL109363Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new screw. Tighten to 50 Nm  .

Clean the ABS sensor seat. Install the sensor on the wheel spindle. Tighten to 10 Nm  .
