Connect the connector to the transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

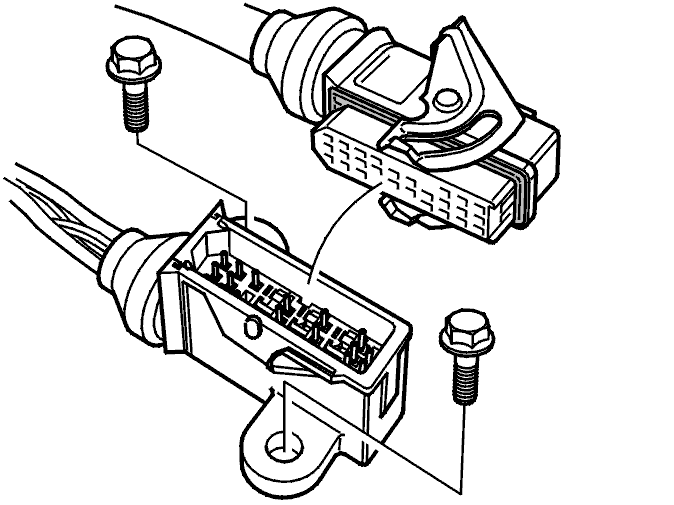

Fig 1: Identifying Transmission Connector
GLL104356Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the screws. Tighten to 25 Nm  .

Plug in the connector from the car.

Ensure that the rubber seal is in position in the upper section of the connector.
