Removing engine compartment components
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

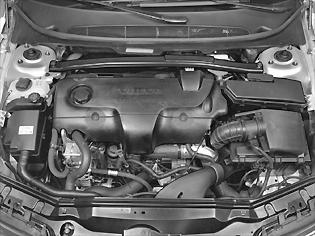

Remove:
- the engine cover
- the upper engine stabilizer brace. See: Remove the upper engine stabilizer brace
- the air cleaner (ACL) housing assembly and the fresh air intake hose.
Unhook the turbocharger (TC) control valve and the connector from the air cleaner (ACL) housing. Pull the air cleaner (ACL) housing out of its mountings.

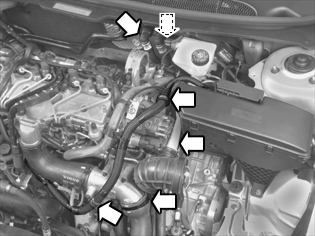

Remove:
- the charge air pipe for the turbocharger (TC). Leave the hose in place on the turbocharger (TC)
- the hose between the intake manifold and the charge air cooler (CAC) from the intake manifold. Fold the hose to one side
- the clamp for the cable harness on the engine
- the nut for the rear engine pad. Leave the nut in place on the engine pad by a few threads.
Disconnect the inner of the two hose couplings from the connecting sleeve for the passenger compartment heater in the firewall.
