Lowering the sub-frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

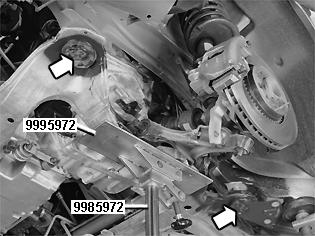

Fig 1: Identifying Sub-Frame Bolts And Mobile Jack

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the mobile jack lightly applied under the left side of the sub-frame. Remove the sub-frame screws.

Lower the sub-frame.

NOTE:

When lowering ensure that the screws for the steering gear release from the sub-frame. Ensure that the ball joint pinion releases from the control arm. Remove the mobile jack and let the frame hang loose.
