Draining coolant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

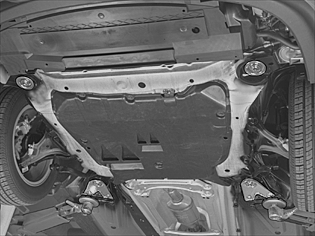

Fig 1: Front Splash Guard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the front splash guard
the splash guard under the engine
the front wheels.

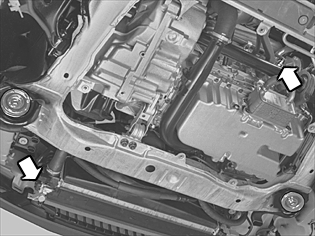

Fig 2: Identifying Radiator And Cylinder Block Drain Plugs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a container under the radiator. Drain off the coolant by opening the nipple on the radiator and the cylinder block. Close the nipples.
