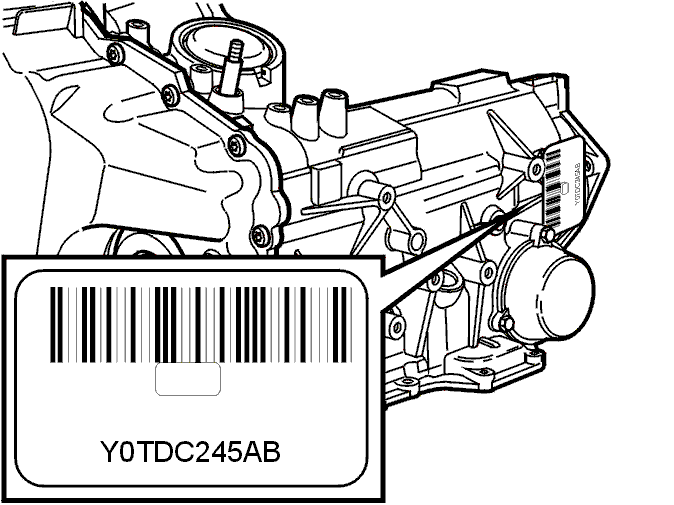

When replacing with a new transmission
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
These screws and nuts must be replaced when replacing the transmission
| Dimension | Quantity | Designation |
|---|---|---|
| M8x12 | 6 | Screw (the torque converter) |
| M14x100 | 4 | Sems screw (sub-frame) |
| M14x15.9 | 2 | Flanged lock nut (the ball joints) |
| M10x65 | 2 | Sems nut (the drive shaft) |
| M8x30 | 1 | Screw (the steering shaft) |
| M8x8 | 1 | Nut (the steering shaft) |
| M12x13.8 | 2 | Flange lock nut (the tie rod) |
| M8x40 | 6 | Allen screw (the propeller shaft) |
