Lifting the engine and transmission to the horizontal position

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

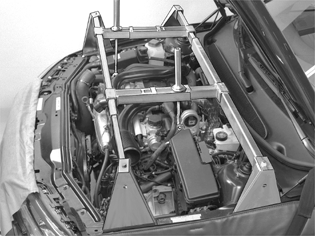

Fig 1: Lifting Beam And Lifting Hook Installed
GLL109648Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the engine and transmission to the horizontal position.

Raise the vehicle.
