Installing the torque converter screws

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Screw In Cut-Out Between The Engine And The Transaxle

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Always use new screws. The screws can also be installed at a later stage when the vehicle is lowered.

Insert a screw in the cut-out under the transmission and turn the engine.

Tighten the 6 screws. Tighten. See: Tightening torque . Use Torx TX50 (see the illustration).

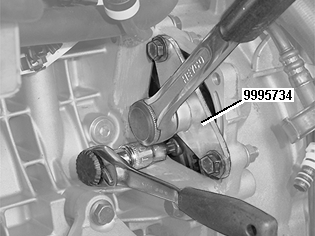

Fig 1: Twisting Tool Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Use new screws.

Install: 9995395 in order to turn the engine.

Install all 6 screws loosely. Tighten the screws until the heads are in contact with the carrier plate. Tighten. See: Tightening torque . Use a Torx socket TX50.

Tighten to the torque converter in one of two ways. From above next to the cranking tool. From under the vehicle where the screws can also be accessed.

Raise the vehicle.
