Installing the starter motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

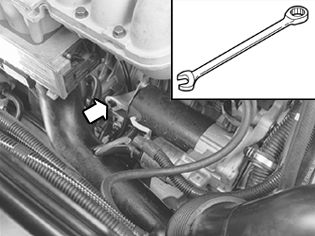

Fig 1: Identifying Starter Motor Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cranking tool

Install:

the starter motor. Tighten the screws
the positive cables and the connector
the nut for the positive cables. Tighten
the screw for the bracket. Tighten. Use a ratchet wrench.

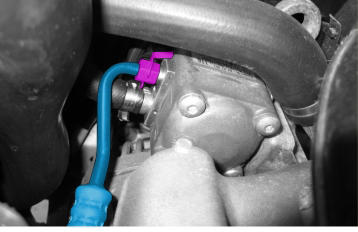

Fig 2: Identifying Pressure Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Use a new O-ring.

Install the pressure line on the servo pump. Tightening torque 30 Nm.

Install the catch.

Remove the hose pliers from the supply line.
