Installing the screw for the front engine pad and the torque rod mounting in the transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

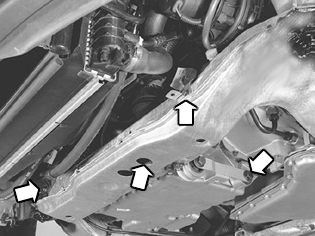

Fig 1: Identifying Parking Heater Cable Conduit And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the screw for the front engine pad. Tighten
the torque rod mounting on the transmission. Use a new screw
the screws for the cable duct and the ground lead bracket.

Cars with parking heaters

Install the heater in the bracket. Tighten the nuts.

Reinstall the fuel line in the clips on the sub-frame.
