Installing the right engine pad

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

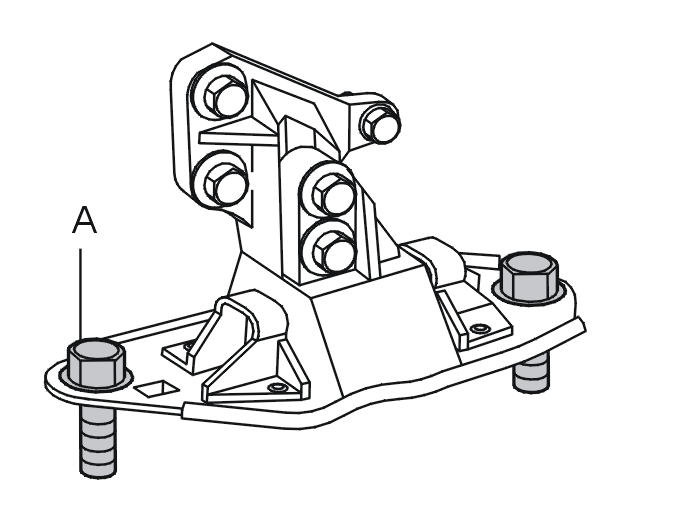

Fig 1: Identifying Engine Pad And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws for the mounting in the sub-frame (A).

Tighten screws to the sub-frame. Tighten. See: Tightening torque . Use: 9512050 .

HINT: Tighten the screws to the sub-frame. Tighten to 65 Nm. Use a colored pen to mark one corner on the screw head and on the corner.

HINT: Then turn the screw to the next corner. This is equivalent to 60° angle-tightening.
